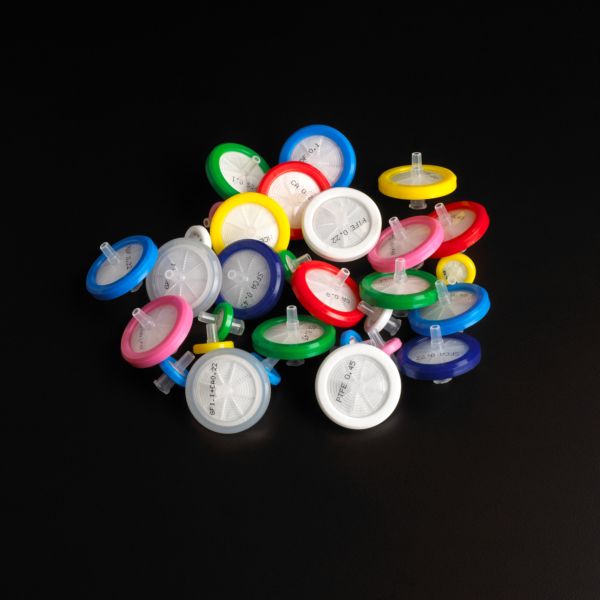

PROGENE® Syringe Filters
- Attach PROGENE® syringe tip filters to the end of a syringe to remove particles from a sample prior to analysis
- All models include a female Luer connector inlet and male Luer connector outlet
- 0.2 µm pore size is ideal for sterilization and fluid ultrafiltration; 0.45 µm for fluid purification
Solvent compatibility:
- CA (Cellulose Acetate): Hydrophilic - Low protein binding - Ideal for fluid sterilization in cell culture and biological research
- Nylon: Hydrophilic - High protein binding - Ideal for filtration of organic and aqueous solutions - Low chemical resistance to acids and bases
- PTFE (Polytetrafluoroethylene): Hydrophobic - Unaffected by most organic solvents, concentrated acids, bases and cryogenic fluids - Ideal for HPLC and solvent filtration
- PVDF (Polyvinylidene fluoride): Hydrophilic - Ultra-low protein Binding with high flow rates - More versatile than nylon, cellulose or PTFE membranes - Use for GC sample prep and clean up
- MCE (Mixed Cellulose Ester): Hydrophilic - Low protein binding - Effectively binds trace proteins - Ideal for filtration of aqueous solutions
- PES (Polyethersulfone):Hydrophilic - Low protein binding -Faster flow rate than PVDF and better chemical resistance than CA - Compatible with organic solvents - Ideal for cell culture and biological research
- Sterile and non-sterile options available
Technical Specifications:
| Specifications | Syringe filters are available in membrane diameters of 13 or 30 mm; and pore sizes of 0.10, 0.22 and 0.45 µm. | Membrane Materials | Available in PES, PVDF, Nylon, PTFE, MCE, GF, CA and SFCA |
| Sterility | Available non-sterile and sterile. Sterile formats - Gamma Irradiation sterility assurance level (SAL) of 10⁻⁶ | Packaging | Sterile syringe filters are supplied individually wrapped in tamper-proof blister packs |
| Purity | Certified RNase, DNase, DNA and Pyrogen-Free | Material | Syringe filter housing is molded from PP (Polypropylene) resin, conforming to USP CLASS VI. |
| Autoclavable | Autoclavable | Manufacturing Standards | Manufactured in a climate-controlled cleanroom that meets or exceeds Class 100,000 standards |
